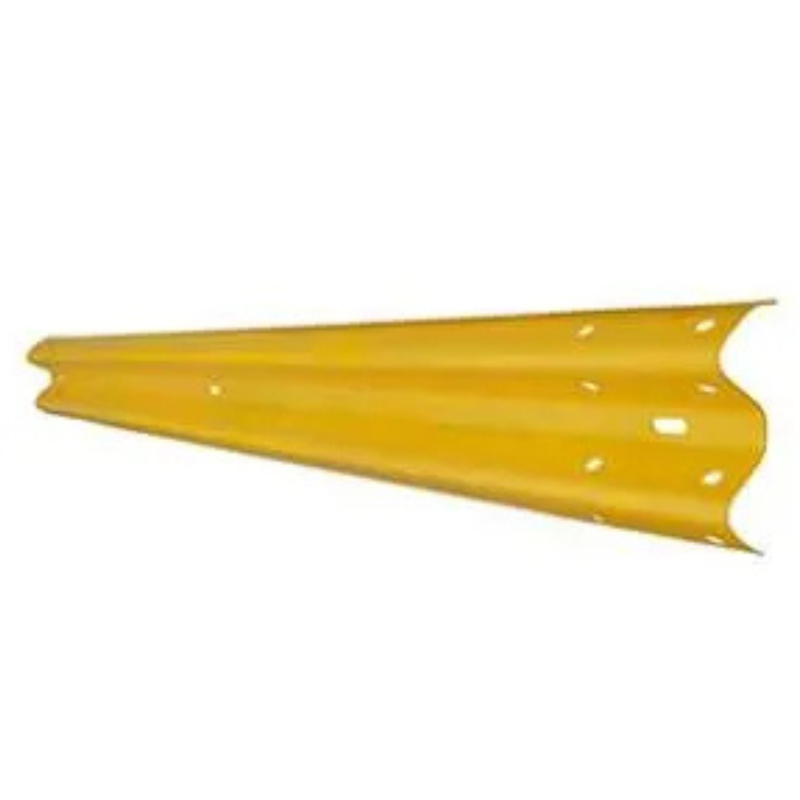

Product Overview
The Armco 3.2m Effective Straight Beam is built for durability and long-lasting protection, making it a key component in your safety barrier system. Designed to withstand tough conditions, it offers reliable strength that helps safeguard people, vehicles, and infrastructure, especially in industrial, manufacturing, or logistical settings.
Its robust construction ensures the beam resists wear and tear, providing peace of mind on even the busiest worksites or public spaces. Additionally, its high-quality finish means it’s well-protected from the elements, giving you a barrier system that’s not only tough but also low-maintenance. Pairing seamlessly with other Armco products, this beam is a versatile choice for creating a tailored barrier solution that meets your specific safety needs.
Technical Data Specification
| Material: | Hot-dip galvanised steel |
| Finish: | Galvanised or Powder Coated Yellow (RAL 1007) |
| Height: | 310mm |
| Overall Length: | 3510mm |
| Effective Length: | 3200mm |
| Thickness: | 3mm |
| Weight: | 33kg |
| Fixings Required: | M16 x 35mm Post Bolt |
| Applications: | Suitable for warehouses, factories, car parks and logistic depots. Not suitable for on-highway use. |

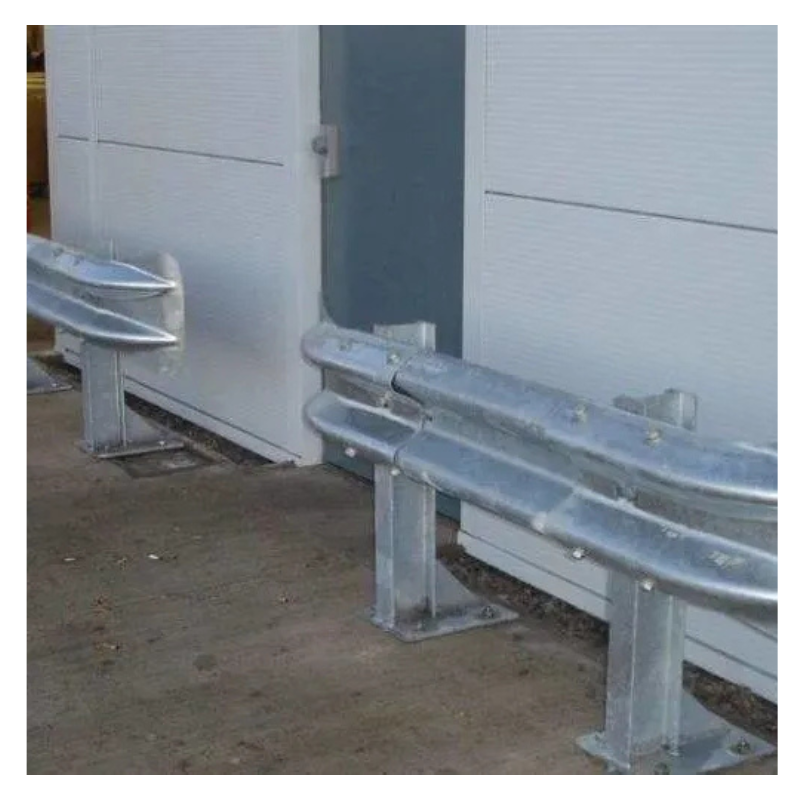

How To Build Your Barrier
1. Start with 1 beam and 2 posts
- For every 3.2m beam, you'll need:
- 2 x 760mm RSJ Posts
- 8 x M16x35mm lap bolts to attach the beams to the posts
- 2 x M16x50mm post bolts (1 per post)
- 8 x Floor anchor bolts (4 per post)
2. Add extra length with additional beams and posts
- For each extra 3.2m beam added to extend the barrier, you'll need
- 1 x 760mm RSJ Posts
- 8 x M16x35mm lap bolts to attach the beams to the posts
- 1 x M16x50mm post bolts (1 per post)
- 4 x Floor anchor bolts (4 per post)
3. Accessories
- Accessories such as Fish Tail Ends, PVC Beam Sleeves, 90 or 135°Corners and Pedestrian Ends each require
- 8 x M16x35mm lap bolts to attach the accessories to the beams
- 90 or 135° corners require additional components. Please visit the individual product page.
