Product Overview

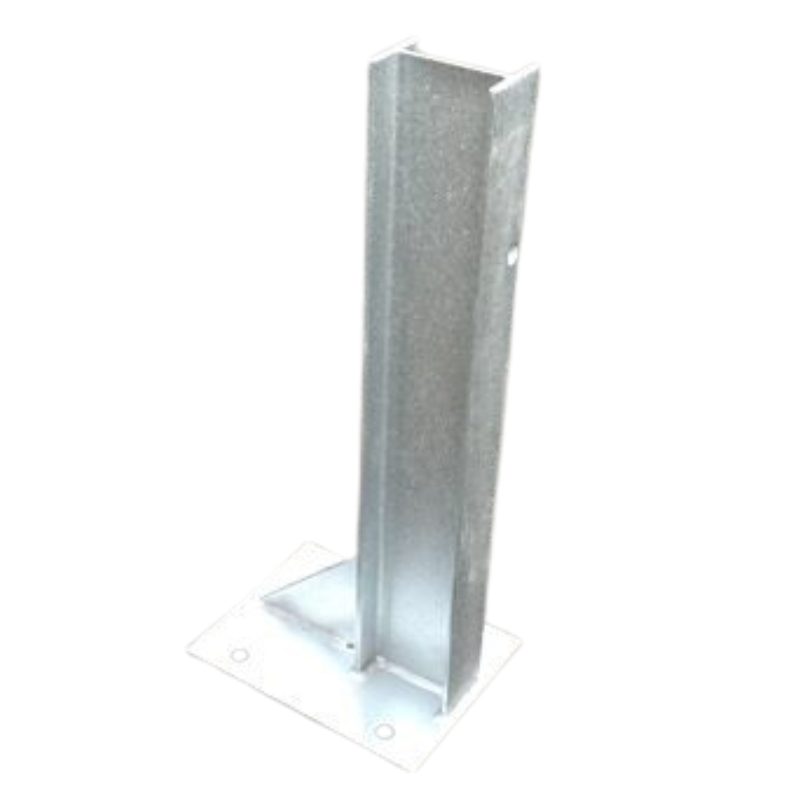

The Armco Bolt Down RSJ Post is a durable and versatile solution for protecting high-traffic areas when used in conjunction with the Armco Beams. Its resilient finish ensures long-lasting performance, even in tough outdoor environments, making it a dependable choice for industrial sites.
Thanks to its bolt-down design, installation is quick and straightforward, allowing for secure placement on various surfaces. Built to handle heavy loads, this post maintains its structural integrity, providing reliable protection in areas with frequent vehicle movement. Whether used for safety or to create clear boundaries, it offers a practical solution that combines ease of use with robust, long-lasting performance.
Technical Data Specification
| Material: | Hot-dip galvanised steel |
| Height: | 760mm |
| Width: | 76mm |
| Depth: | 127mm |
| Thickness: | 13mm |
| Weight: | 16.25kg |
| Base Plate: | 330 x 250mm |
| Fixings Required: | M16 x 50mm Post Bolt |
| Applications: | Suitable for warehouses, factories, car parks and logistic depots. Not suitable for on-highway use. |
How To Build Your Barrier
1. Start with 1 beam and 2 posts
- For every 3.2m beam, you'll need:
- 2 x 760mm RSJ Posts
- 8 x M16x35mm lap bolts to attach the beams to the posts
- 2 x M16x50mm post bolts (1 per post)
- 8 x Floor anchor bolts (4 per post)
2. Add extra length with additional beams and posts
- For each extra 3.2m beam added to extend the barrier, you'll need
- 1 x 760mm RSJ Posts
- 8 x M16x35mm lap bolts to attach the beams to the posts
- 1 x M16x50mm post bolts (1 per post)
- 4 x Floor anchor bolts (4 per post)
