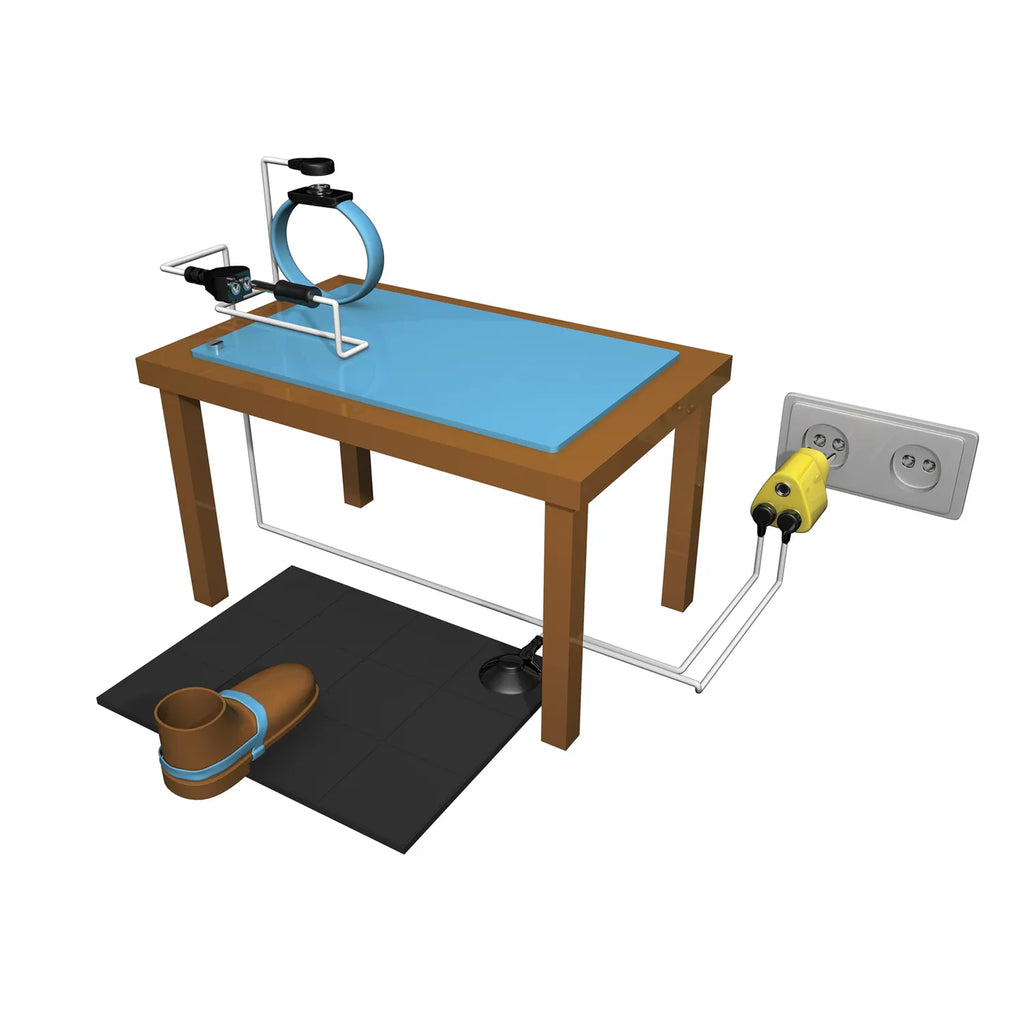

ESD Mat Accessories

The list above runs in conjuction with our ESD matting solutions to help avoid electric shock.

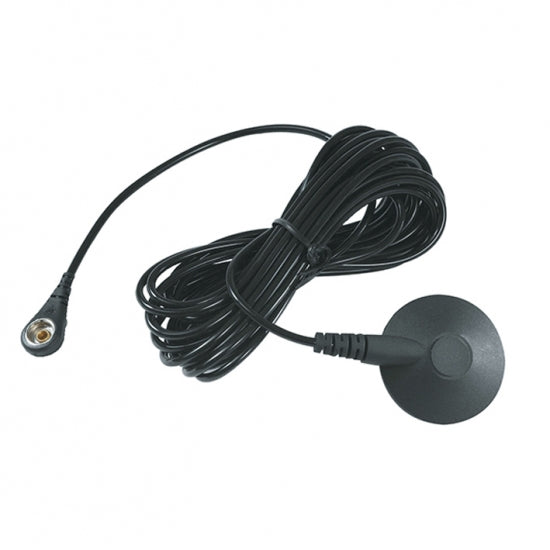

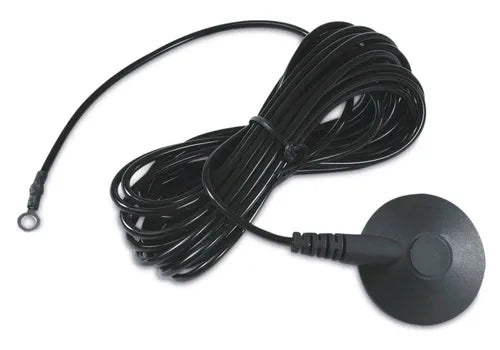

Floor Mat Grounding Cord

• 4.5 m cable and connector that connects a mat to ground.
• Easy to install, simply snap it to a mat and connect terminal to ground.
• The low profile bevelled cap prevents the cord from being accidentally removed from the mat.
• Resistor 1 Meg mat to ground.
• Available with a ring terminal or 10 mm female socket that connects to grounding plug.
• Meets the requirements of ANSI/ESD S-20.20 and EIA625.

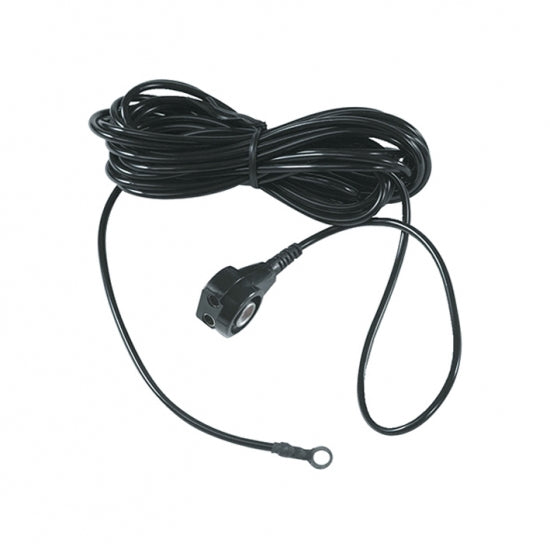

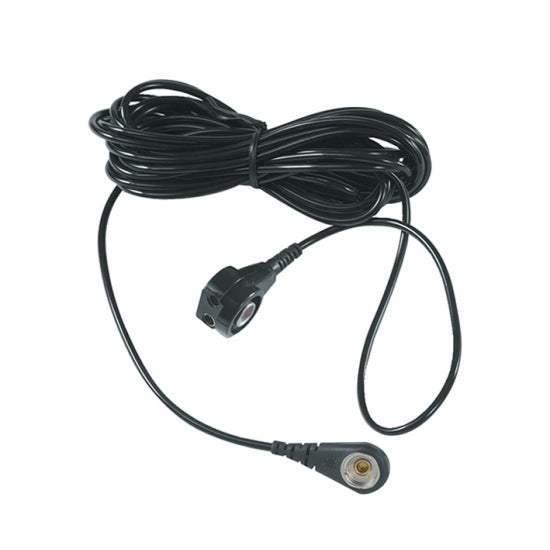

Common Grounding Point Cord

• 4.5 m cable connects one or two wrist bands and a bench mat to ground.
• Assures that all parts are at the same ground potential.
• Easy to install, simply snap it to a mat, plug in the wrist strap coil cord and connect terminal to ground.
• Resistor 1 Meg mat to ground.
• Available with a ring terminal or 10 mm female socket that connects to grounding plug.
• Meets the requirements of ANSI/ESD S-20.20, EIA625 and ANSI/ESD S6.1.

Earth Bonding Plug

• Connects grounding cords to ground.
• 1 Meg Resistor, 3 x 10 mm male studs, allowing multiple cord connections per plug.
• Available in Continental or U.K. version.

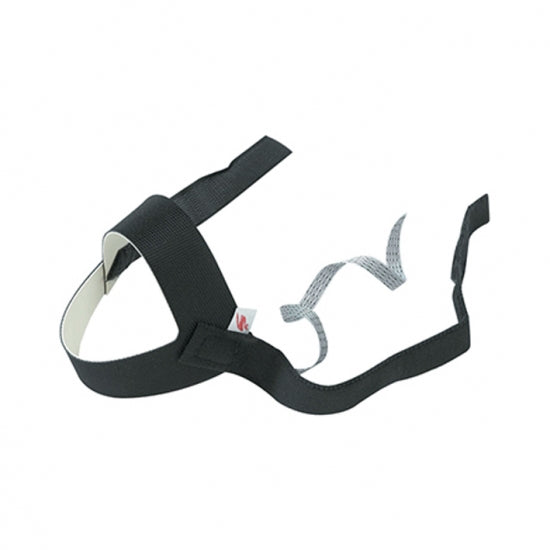

Heel Grounder

A device for connecting a walking or standing person to ground by using a conductive rubber thread to provide the necessary electrical contact between the person and the floor mat.

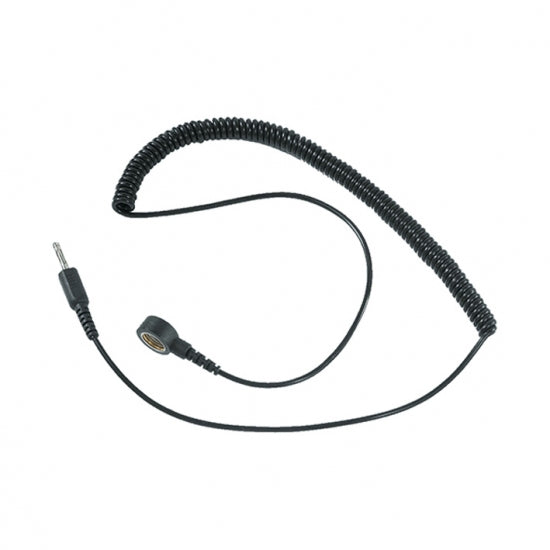

Coil Cord

• 1.8m cable connects wristband to common ground point on Table mat.
• 1 Meg resistor, 10 mm socket snaps to wristband, and the other end is a banana plug.
• Meets the requirements of EOS/ESD S1, MIL-STD-1686, and EIA 625.

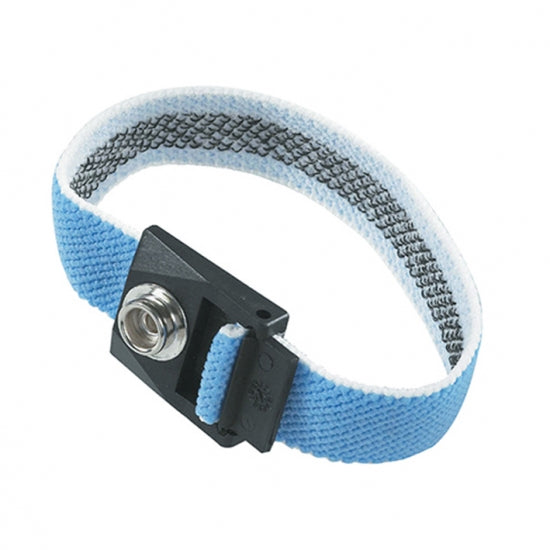

Wrist Band

• Wrist Bands connect a worker’s skin to ground and are therefore the primary means of controlling static charge on personnel. When properly worn and connected to ground, static charges are safely dissipated from the person.
• Meets the requirements of EOS/ESD S1, MIL-STD-1686, and EIA 625

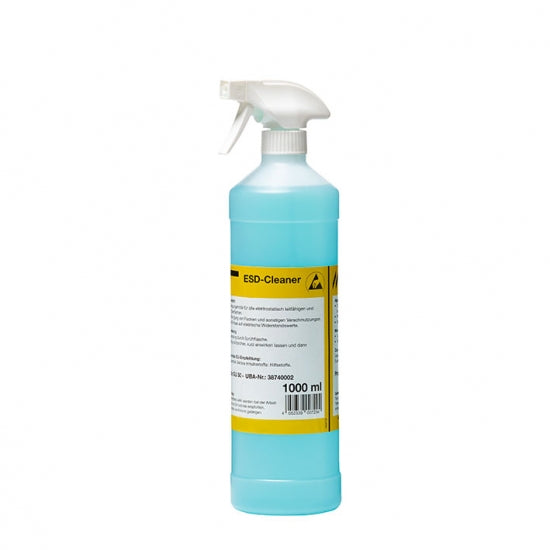

Mat Cleaner

• Mat cleaner is recommended for static safe table and floor mats. Its non abrasive formula leaves no film and is designed to enhance the static dissipative properties of ESD safe surfaces. Effectively removes flux residues, oil, finger marks and dirt.
• Convenient 1000 ml bottle trigger spray.
