Delivery: Normally 3 - 4 Weeks
Compact Swing Barrier Gates offer a modern and visually appealing way to prevent entry to a smaller entrance or estate.
- Height - 1000mm
- Pivot post - 1000(H) x 100(W) x 100(D) mm

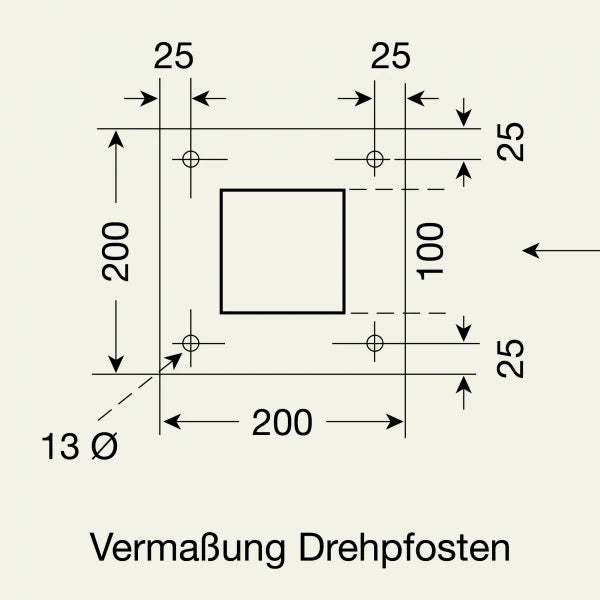

- Base Plate: 200 mm x 200 mm x 10 mm

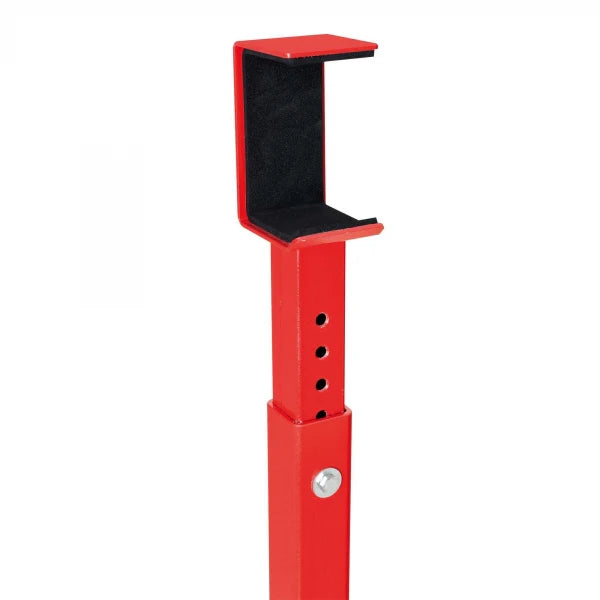

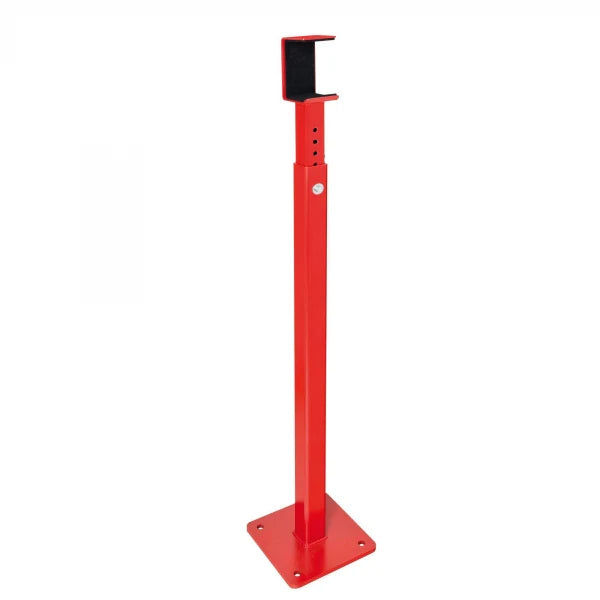

- Support Posts: 50 mm x 50 mm x 1000 mm
- Crossbeam: 40 mm x 40 mm
- Easy to set up - quick and easy to install
- 2 supporting legs - protected when open/closed
- Extra wide aluminium tree with anti-seat bar
- Highly visible barrier arm - reflective red/white
- All steel parts galvanized and powder-coated
- Automatic locking every 90 degrees
- Supplied with cylinder lock and bolt down plates
Product Specifications:
- Supplied with cylinder lock as standard – triangular key lock optional
- Size: Length 2.5 metres, 3 metres, 3.5 metres, 4 metres, 4.5 metres
- Clearance: 2170 mm, 2670 mm, 3170 mm, 4170 mm
- Pivot Post: Height 1000 mm, Width 100 mm, Depth 100 mm
- Base Plate: 200 mm x 200 mm x 10 mm
- Support Posts: 50 mm x 50 mm x 1000 mm
- Crossbeam: 40 mm x 40 mm

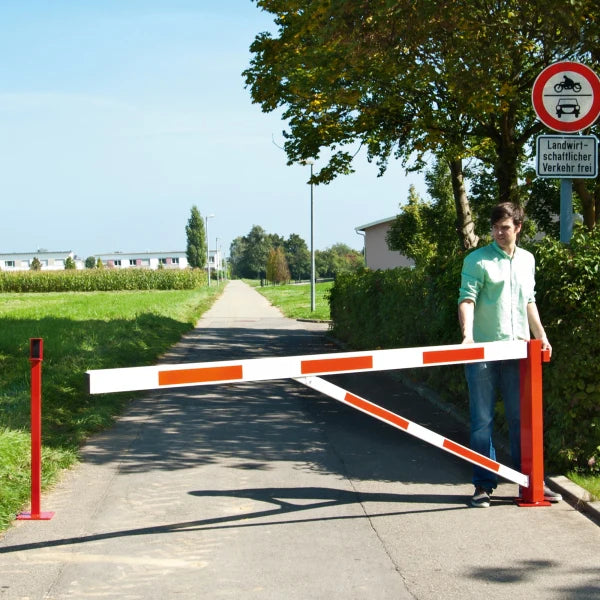

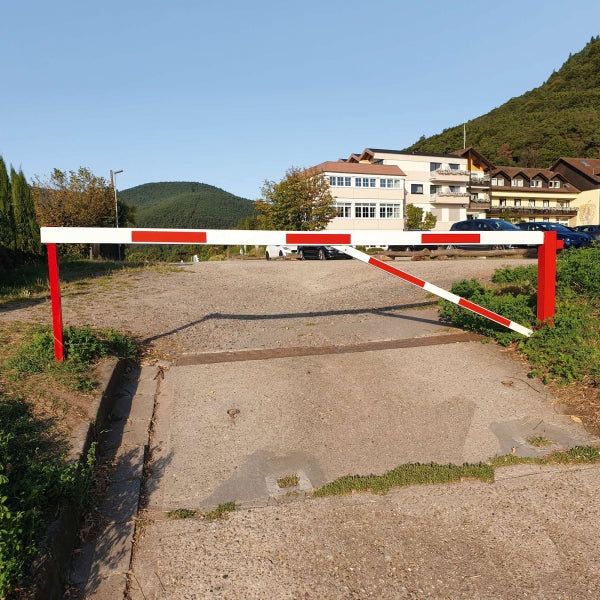

The Compact Swing Barrier Gate represents the new generation of swing barriers with greater functionality plus possessing both modern and visually appealing looks, which will add a greater presence to the entrances of public and commercial buildings, carparks, sites etc.
Manufactured in steel and aluminium it is supplied complete with 2 support posts for secure location in open or closed positions. All steel parts are Hot Dip Galvanised and powder coated red, the aluminium barrier arm is rectangular in section finished in white with red reflective strips with an ‘Anti-sit’ feature incorporated.
The pivot post on the standard model is for surface mounting (sub-surface version available on request – please ask for details)

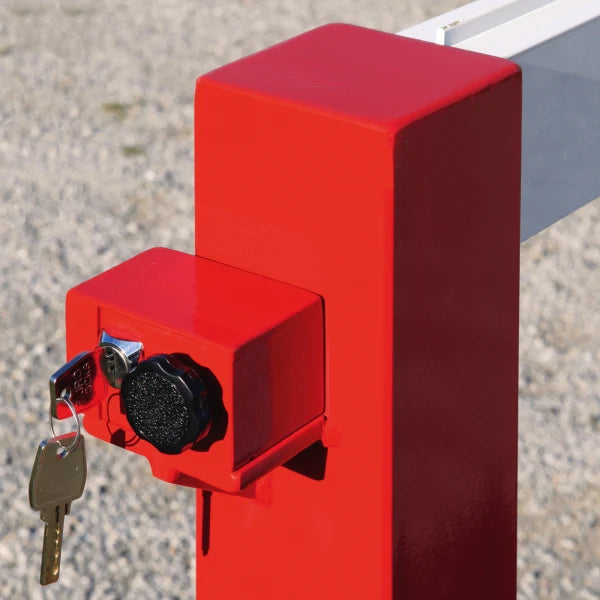

The standard model comes equipped with a cylinder lock with two keys and the barrier locks every 90° of rotation. Additional locking options are:
- Triangular key locking
- Keyed alike cylinder locks
- Customer supplied profile locks
