Compact Access Barrier Gate

Barrier Gates Clearance: 3 Metres
Barrier Gate Support: Drop-down Support
Trade Price
Sale price€1,929.72ex VAT
€2,373.56inc VAT
SKU: 765324
Suitable For Areas With More Clearance

Delivery: Normally 3 - 4 Weeks

  • Counterweight lifting action
  • Bolt down to install
  • Fully equipped for immediate use
  • Steel parts are galvanized and powder-coated red
  • Fitted with anti-sit bar and reflective strips
  • Includes cylinder locking system with 2 keys
  • Automatically engages in open and closed positions
Bolt Down
Easy Installation
High Visibility
Description

Product Specifications:

  • Height: 1000mm
  • Base Plate: 295x295x10mm
  • Pivot Post: 200x100x100mm
  • Support Arm: 50x50x1000mm
  • Aluminium Arm: 90x60mm

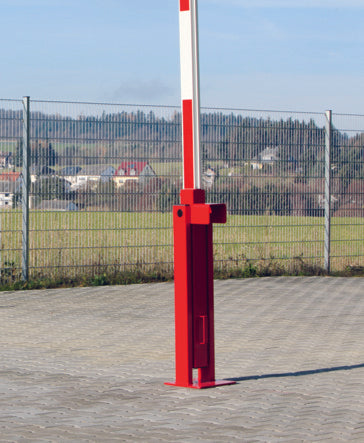

The Compact Access Barrier Gate - Counterweight is a highly visible barrier designed to control the flow of traffic into carparks, factory yards and other private areas. The barrier is made from high quality galvanised steel and provides excellent use throughout it's lifespan. The counterweight action allows the boom to be lifted and lowered easily.

Choose from a barrier with a fixed support arm or a drop down arm, depending on the space available and the vehicles that will be driving through. The main boom is manufactured from light aluminium that helps to reduce the overall weight of the barrier when opening or closing it.

The barrier comes powder coated red and white as standard. All steel components are hot-dip galvanised, making the barrier resistant to rust and corrosion. The boom arm features red reflective strips for visibility day and night. There is also an 'anti-sit' feature on the arm, ensuring no one can sit on and damage the arm.

The barrier should be bolted down using the pre-drilled holes in the base plates. It is recommended to install a concrete pad underneath for the best hold. The barrier can be locked in the upright or down position using the integrated cylinder lock.


Overall Width vs. Drive Through Width

  • 3000mm - 1895mm
  • 3500mm - 2395mm
  • 4000mm - 2895mm
  • 4500mm - 3395mm
  • 5000mm - 3895mm
  • 5500mm - 4395mm
  • 6000mm - 4895mm
  • 6500mm - 5395mm
  • 7000mm - 5895mm
